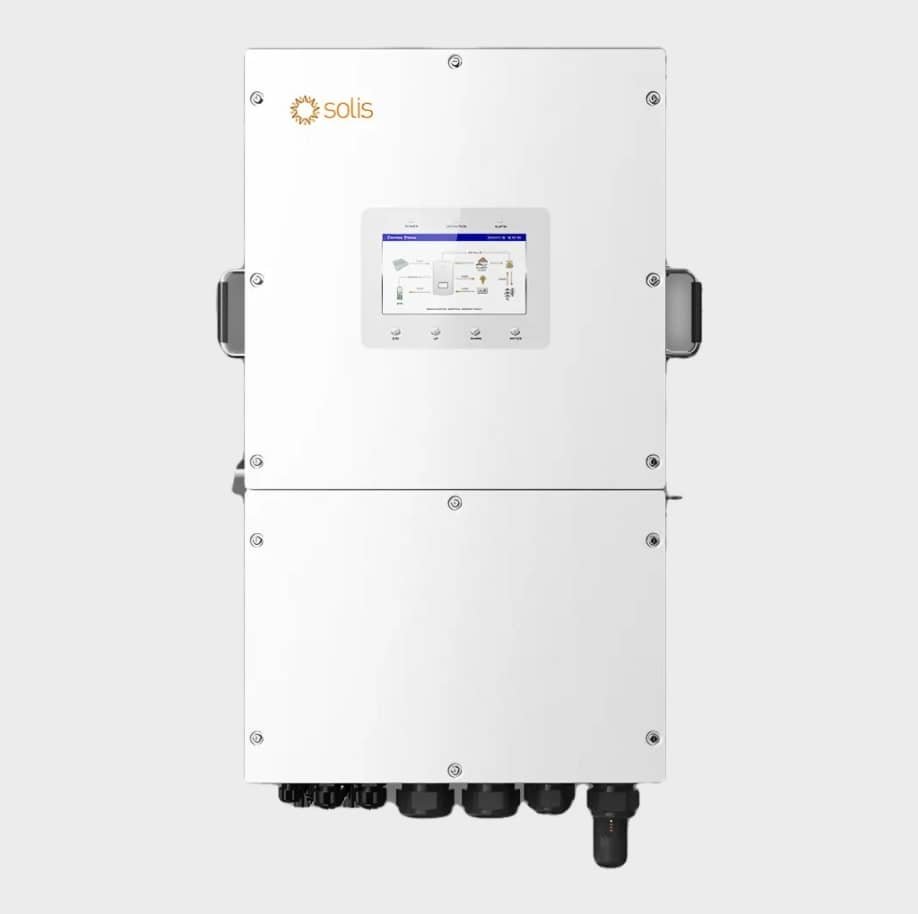

Description
The Solis S6-EH1P14K03-NV-YD-L series energy storage inverter is suitable for large residential PV energy storage systems, supports up to 40A MPPT current input, is suitable for 182mm/210mm solar panels, has integrated battery treatment and protection functions, and is more friendly to batteries. And can support multiple inverters in parallel to form a single-phase or three-phase system with the maximum power of 160 kW. also support AC coupling to retrofit existing solar systems; maximum 350A charging and discharging current, providing higher energy density. Intelligent and reliable, it makes it the first choice for large-scale residential PV energy storage systems.
Single-Phase Low-Voltage Energy Storage Inverter
Leading Features
- 10 seconds of 200% overload capability
- Multiple inverters can operate together to form a microgrid
- Generator-compatible to extend backup duration during grid power outage
- Supports dual backup ports for intelligent control of critical and non-critical loads
- Automatic switchover time is <4ms, providing seamless transitions from grid to backup
- Supports a maximum input current of 20A, making it ideal for all high-power PV modules of any brand
- Ensures excellent power supply stability, keeping the load unaffected by a weak grid or generator supply fluctuations
- The battery’s DC side can handle a maximum charge/discharge current of up to 290A, allowing it to store more surplus energy generated by PV systems
