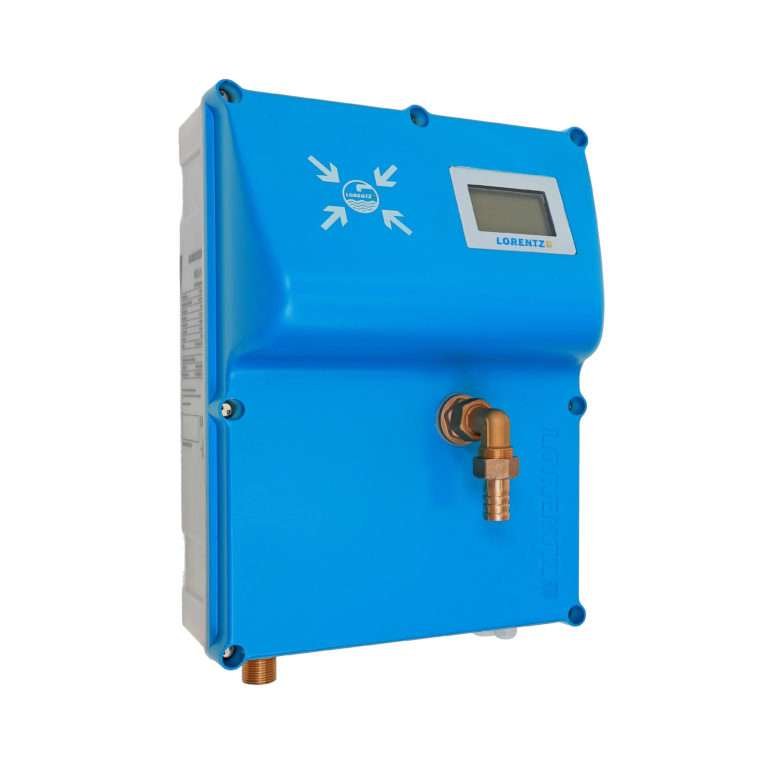

LORENTZ smartTAP Water Dispenser Solution

FEATURES:

• Secure NFC tag-based water dispenser
• Intuitive user interface, high user acceptance, accessible for all irrespective of age, gender or capabilities
• Robust and secure housing
• 10 Wp solar module for charging
• Integrated battery charging for 24-hour use

TECHNICAL DATA:

• DC Input Umax 24 V DC
• Max. pressure 3 bar
• Min. pressure 0.1 bar
• Flow at 0.2 bar 19 l/min
• Flow at 3 bar 54 l/min
• Accuracy > 95 %
• Battery NP7-12 lead acid
• Bluetooth FCCID: QQQBT127

** Optional integrated GSM modem:
2G / 3G communication
R&TTE, GCF, CE, FCC, PTCRB,
IC, UL and AT&T approvals
External antenna

ENVIRONMENTAL DATA:
For drinking water – max 40 oC
Enclosure IP66
Operating temp (ambient) 0 to 45 oC
non-freezing
Humidity max. 95 %

PRODUCT DIMENSION/WEIGHT:

• Height 400 mm / 15.75 ”
• Length 300 mm / 11.81 ”
• Width 187 mm / 7.36 ”
• Weight (dispenser) 4.8 kg
• Weight (PV module and cable) 1.36 kg
