| Head | max. 80 m |
| Flow rate | max. 13 m³/h |
| Controller | PS2-4000 |
| Power | max. 4,0 kW |
| Input voltage | max. 375 V |
| Optimum Vmp** | > 238 V |
| Motor current | max. 14 A |
| Efficiency | max. 92 % |
| Ambient temp. | -40…50 °C |
| Enclosure class | IP68 |

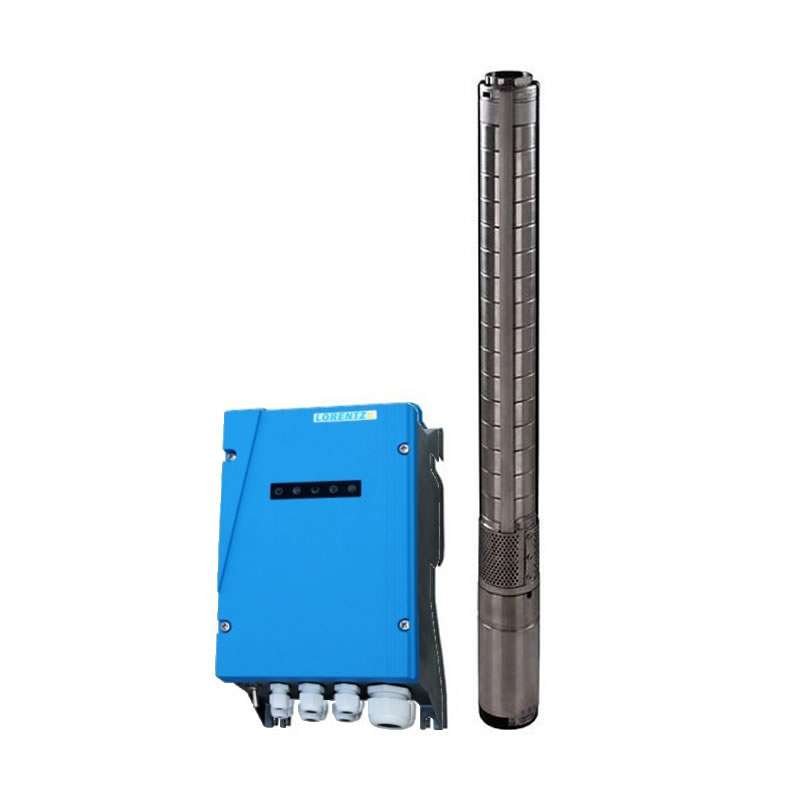

| Pump Unit | PU4000 C-SJ8-15 |
| Water temperature | max. 50 °C |
| Borehole diameter | min. 4,0 in |
| Pump end | PE C-SJ8-15 |
| Materials | AISI 304/316 |
| Motor | ECDRIVE 4000-C |
| Rated Power | 4,0 kW |
| Motor speed | 900…3 300 rpm |
| Material | AISI 304/316 |
| Insulation class | F |
| Enclosure class | IP68 |
| Submersion | max. 150 m |
You might also be interested in these products from the same category.

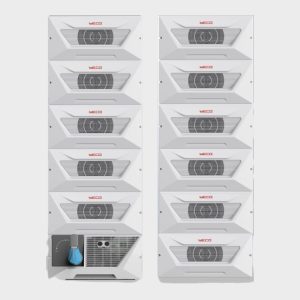

Introduction to WECO KIT 84.37 kWh Energy Storage System Designed…
Grundfos RSI 3×380-440V IP66 7.5kW 16A – Powerful and Versatile…

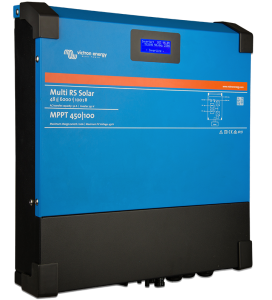

Leading the Charge in Solar Power Solutions with the Victron…

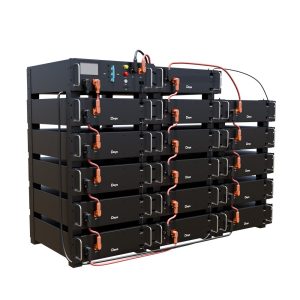

DEYE BOS-W 5.1 kWh 51.2 V 100 Ah HV LiFePO₄…
