Description

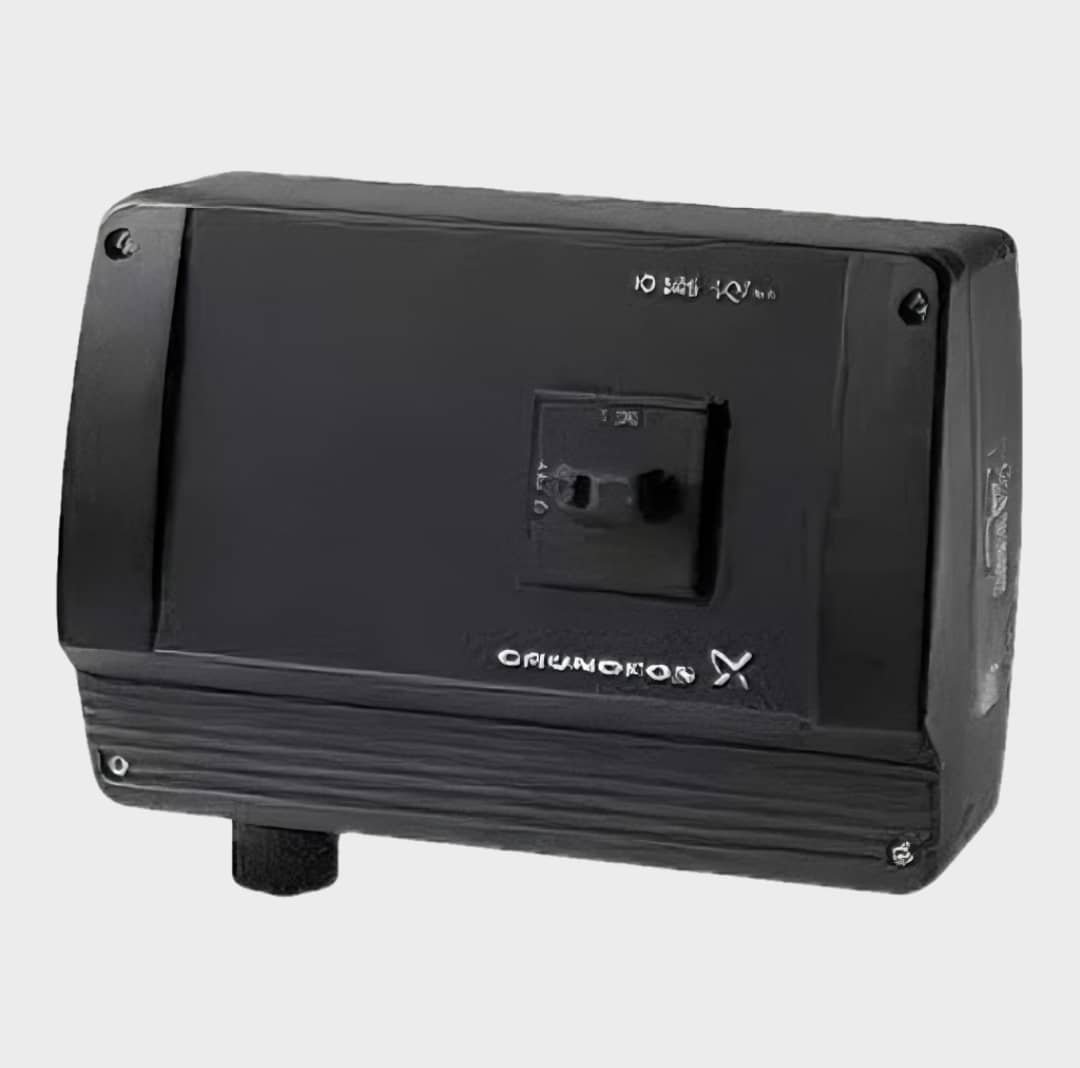

IO 101
The IO 101 switch box is designed specifically for solar-powered SQFlex systems. The IO 101 enables the connection of a generator supply backup in case of insufficient solar radiation. The switching between solar power and the generator must be made manually. In case the generator is stopped manually or runs out of fuel, the IO 101 will automatically switch to the solar energy supply. The IO 101 functions as a connection box joining all necessary cables.
| TECHNICAL: | ||
| Approvals: | CE, EAC, RCM | |
| INSTALLATION: | ||
| Range of ambient temperature: | -30. 50 °C |
| ELECTRICAL DATA: | ||
| Mains frequency: | 50 / 60 Hz | |
| Rated voltage: | 1 x 115 VAC – 15%/+10% V | |
| Enclosure class (IEC 34-5): | IP55 | |
| OTHERS: | ||
| Net weight: | 2.79 kg | |
| Gross weight: | 2.79 kg |
